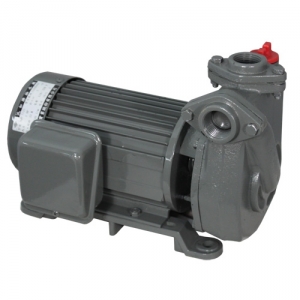

SQD Domestic Self-priming Pump
| |
|
|
 |
 |
|
| |
|
|
| FEATURES |
|
|
| |
|
|
|
1. Close coupled pump, small size, space-saver, high efficiency, easy maintenance.
2. Mechanical seal, no leakage, long life.
3. Depends on pressure or capacity, adopt single or double-stage impeller design.
4. Copper impeller, remarkable wear-resistant.
5. Great suction ability(9M). Suitable for surface water supplies or underground.
|
| |
|
|
| APPLICATIONS |
|
|
| |
|
|
|
1.Suitable for transport clean water, without solid particles or non-corrosive fluids.
2.Reverse osmosis systems and water treatment systems.
3. Garden sprinkler systems and car wash systems.
4.Water supply for apartments and residences.
|
| |
|
|
| OPERATING CONDITIONS |
|
|
| |
|
|
|
1.Liquid temperature: Max. 60℃
2. Ambient temperature: Max. 50℃
3. Working pressure: Max. 8 kg/cm2
4.Suction lift:9M
5. Suitable for transport clean water, without solid particles or non-corrosive fluids.
|
| |
|
|
| SPECIFICATION |
|
|
| |
|
|
- Power: 1/2HP~7.5HP
- Protection: IP54
- Insulation: B
- Pole: 2P
- Voltage: 1phase 110~220V*60HZ; 1phase 220~240V*50HZ
3phase 220/380V*60HZ; 3phase 380~415V*50HZ
- Suction/Discharge: 3/4”~3”
- Max.Head: 65M
- Max.Capacity: 800 LPM
|
| |
|
|
