Industrial Pumps
|
|
|
|
WZ series Jockey pump
| |
|
|
 |
|
|
| |
|
|
| FEATURES |
|
|
| |
|
|
 |
| |
|
|
| APPLICATIONS |
|
|
| |
|
|

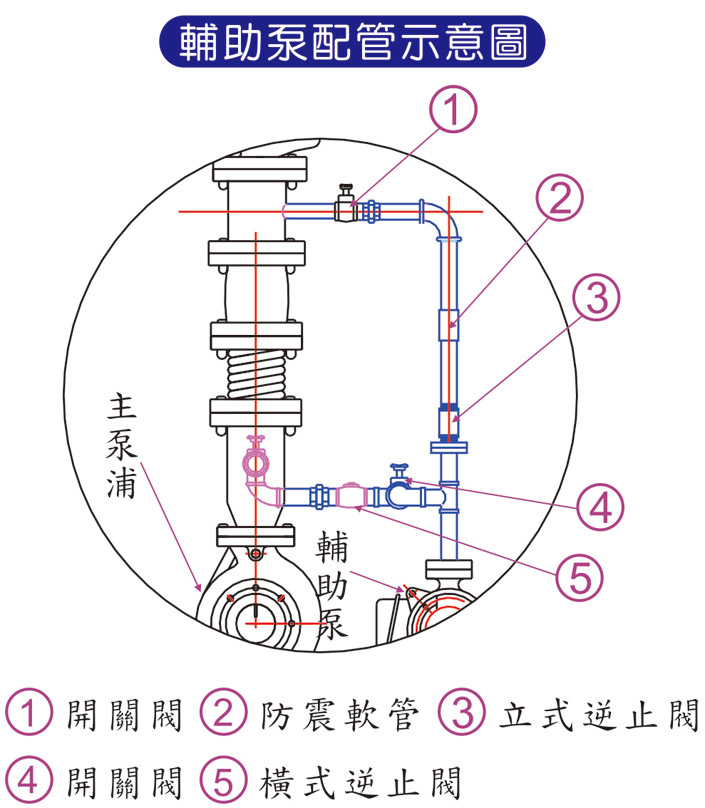

- It is commonly used for fire fighting systems. When there is small water demand in fire fighting systems, the main pump will not start, jockey pump will operate for this situation.
- Temperatory water boosting supply for construction sites.
- It is suitable for multi-storey buildings。
|
| |
|
|
| OPERATING CONDITIONS |
|
|
| |
|
|
|
1. Ambient temperauter: 0~+50℃
2. Liquid temperature: +4~+80℃
3. It is suitable for clean water or non chemical property liquid. It should contain no solid particles in the liquid.
4. Working pressure: Max.25Bar
5. You can choose gland packing or mechanical seal type for this pump model.
|
| |
|
|
| SPECIFICATION |
|
|
| |
|
|
- Horsepower: 3HP~40HP
- Protection: IP54~55
- Insulation: B,E,F
- R.P.M.: 2P,4P
- Voltage: 3 phase 220/380/440/660*60HZ
3 phase 380~415V*50HZ
- Suction/Discharge: 1”~2”
- Head: Max. 250 M
- Capacity: Max.380L/min (22.8M³/hr)
|
| |
|
|
| DOWNLOAD |
|
|
| |
|
|
| WZ型 高揚程再生泵浦型錄下載 (Link) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
