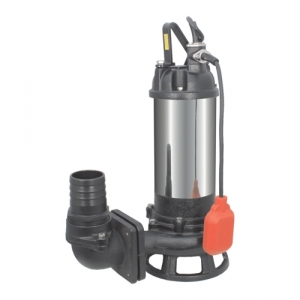

EFK Submersible Cutter Sewage Pump

FEATURES
1. Tipped with tungsten cutter to cut off foreign objects and prevent from clogging,minimized abrasive wear,large impeller clearance, and maintenance free. 2. Pump is equipped with motor overload protector,it will shut off automatically to prevent motor from burnout whenever its voltage drop, impeller plugged, and other unusual conditions. 3. The mechanical seal part combines with superb double set mechanical seals, and can select SIC carbon steel mechanical seal.
APPLICATIONS
Dredging, high concentration slurry. Building waste water treatment system, sewage treatment plant, community market. Drainage waste water from industry and factory. Fishery, animal husbandry, dairy farm, piggery,fecal sewage tank. Other sewage or sump treatment system. EFD type is suitable for PH 3~11 waste water.
OPERATING CONDITIONS
1.  Ambient Temperature:  0~+40℃ 2.  Liquid Temperature:  +0~+40℃ 3.  Max. Depth: 30M 4.  Forbid 24 hours continuously running or running pumps under lowest running water level. 5.  Solid Passage: 22~28MM
SPECIFICATION
Output: 1/2HP~7.5HP Motor Protection: IP68 Insulation: F Pole: 2P Voltage: 1phase 110 or 220V*60HZ(1/2HP~2HP)  3phase 220 or 380V*60HZ Voltage: 1phase 220~240V*50HZ(1/2hp~2hp)  3phase 380~415V*50HZ Discharge: 2” ~ 4” Max. Head:  28.5M Max. Capacity:  1100 LPM
DOWNLOAD
EFK Submersible Cutter Sewage Pump Brochure Download(50HZ) (Link)
