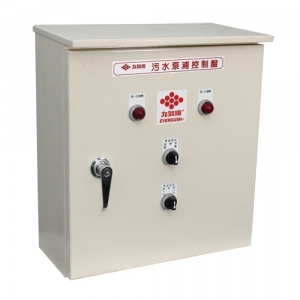

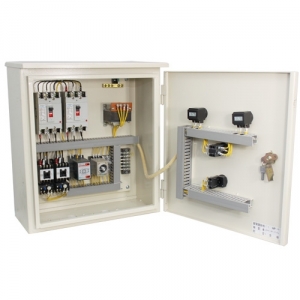

Water Supply Series for Control Panel

FEATURES
We can custom made control panel with different schemes for different environment. Customers can choose graphite electrode、float switch or level switch with water supply control unit. Customers can adjust pump operation by different pressure、capacity and temperature with PLC function. We can provide monitor port which can organize operation and monitor interface according to customer demands. You can add soft starter or earth leakage circuit breaker for special requirements.
APPLICATIONS
Water supply systems, submersible booster pumps, submersible sewage pumps, water supply booster pumps...etc.
OPERATING CONDITIONS
Ambient temperature:  0~+50℃ Liquid temperature:  +0~+60℃(If liquid temperature is over 60~100℃, we suggest to replace to heat-resistant "VITON" mechanical seal.) Max. pressure: 10 BAR. It is suitable for clean water or non chemical property liquid. It should contain no solid particles in the liquid.
SPECIFICATION
1.Horsepower:1HP~20HP 2.Operating method: Simplex, duplex or alternative operations. 3.IP protection: IP54~IP55 4.Voltage: 1 phase 220V*60HZ(2HP below) ;3 phase 220/380/440/660V*60HZ                1 phase  220~240V*50HZ(2HP below); 3 phase 380~415V*50HZ 5.Casing material:Steel、SS400、stainless steel. 6.Indoor or outdoor type can be chosen by customer demands. 7.We accept custom made design requests. 8.You can add soft starter, inverter or other accessories.
DOWNLOAD
Control Panel(Water Supply Series) Brochure Download (Link)
